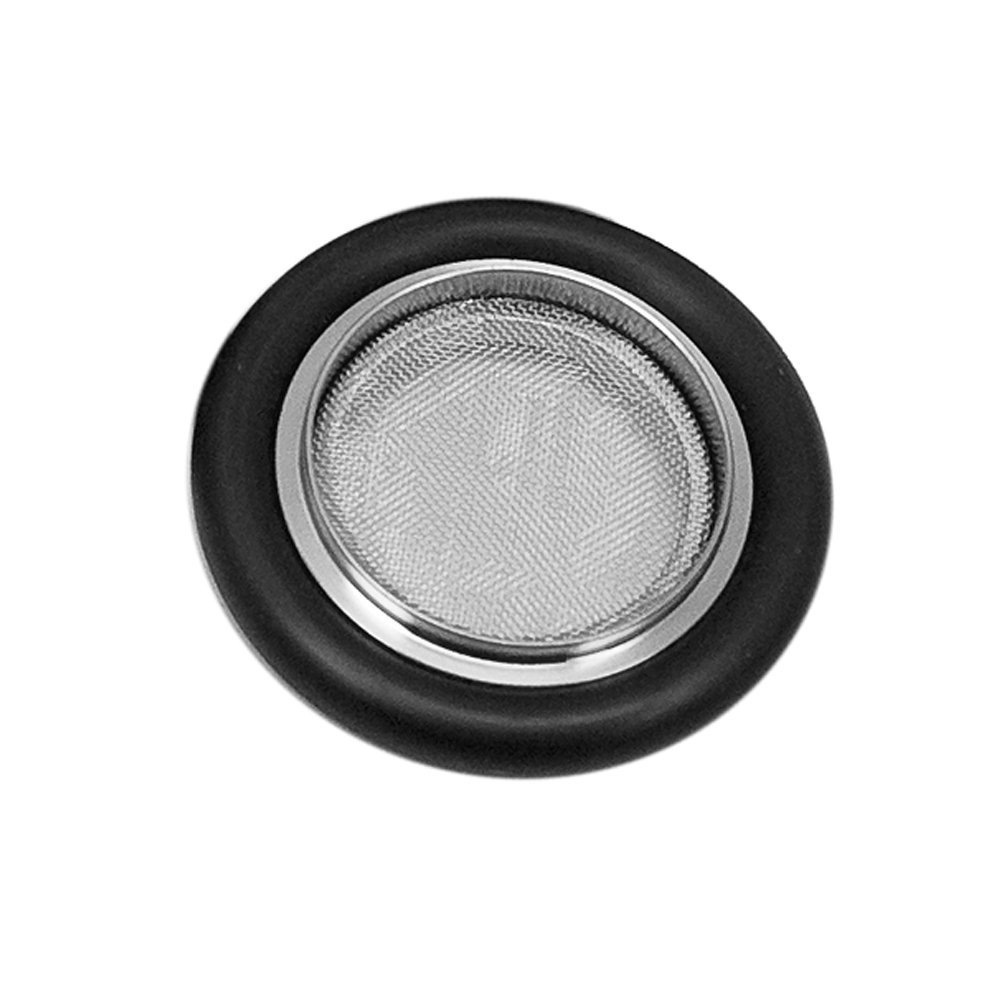

When it comes to maintaining vacuum systems, the smallest details can make the biggest difference. The Centering Ring Assembly with Screen is an often-overlooked component that plays a critical role in protecting your valuable equipment from costly damage. Whether you're working in a research laboratory, industrial setting, or academic institution, this simple but effective device can extend the life of your vacuum pumps and prevent costly downtime.
Mechanical vacuum pumps are precision instruments that can be severely damaged by even microscopic particles of debris. Loose particles can cause scoring on internal surfaces, reduce efficiency, and lead to complete pump failure. The 210-micron mesh screen in this centering ring assembly acts as a protective barrier, filtering out harmful particles while allowing air to flow freely through the system.
Crafted from high-quality Stainless Steel 304, this centering ring assembly is built to withstand the demands of laboratory and industrial environments. The NBR (Nitrile Butadiene Rubber) O-ring provides excellent resistance to oils and acids while maintaining the flexibility needed for reliable sealing. The ISO-KF flange size NW-25 ensures compatibility with standard vacuum systems, making this a versatile solution for various applications.
Installing this centering ring assembly is straightforward - simply place it at the inlet of your mechanical pump where it will serve as the first line of defense. The compact dimensions (A= 0.50 inch, B= 0.21 inch) make it unobtrusive while providing maximum protection. Regular inspection and cleaning of the mesh screen will ensure continued optimal performance of your vacuum system.
This debris protection ring is ideal for use in mechanical pump inlets across various industries. It's particularly valuable in research laboratories where sample integrity is paramount, in industrial manufacturing processes where equipment reliability is critical, and in educational institutions where maintaining equipment longevity is essential for budget-conscious operations.
