When you need to know exactly how fine your particles are, this precision grindometer delivers laboratory-grade accuracy right at your fingertips. Whether you're formulating paint, mixing pigments, testing chocolate texture, or working with pharmaceuticals, having the right particle size data can make all the difference in your final product quality.

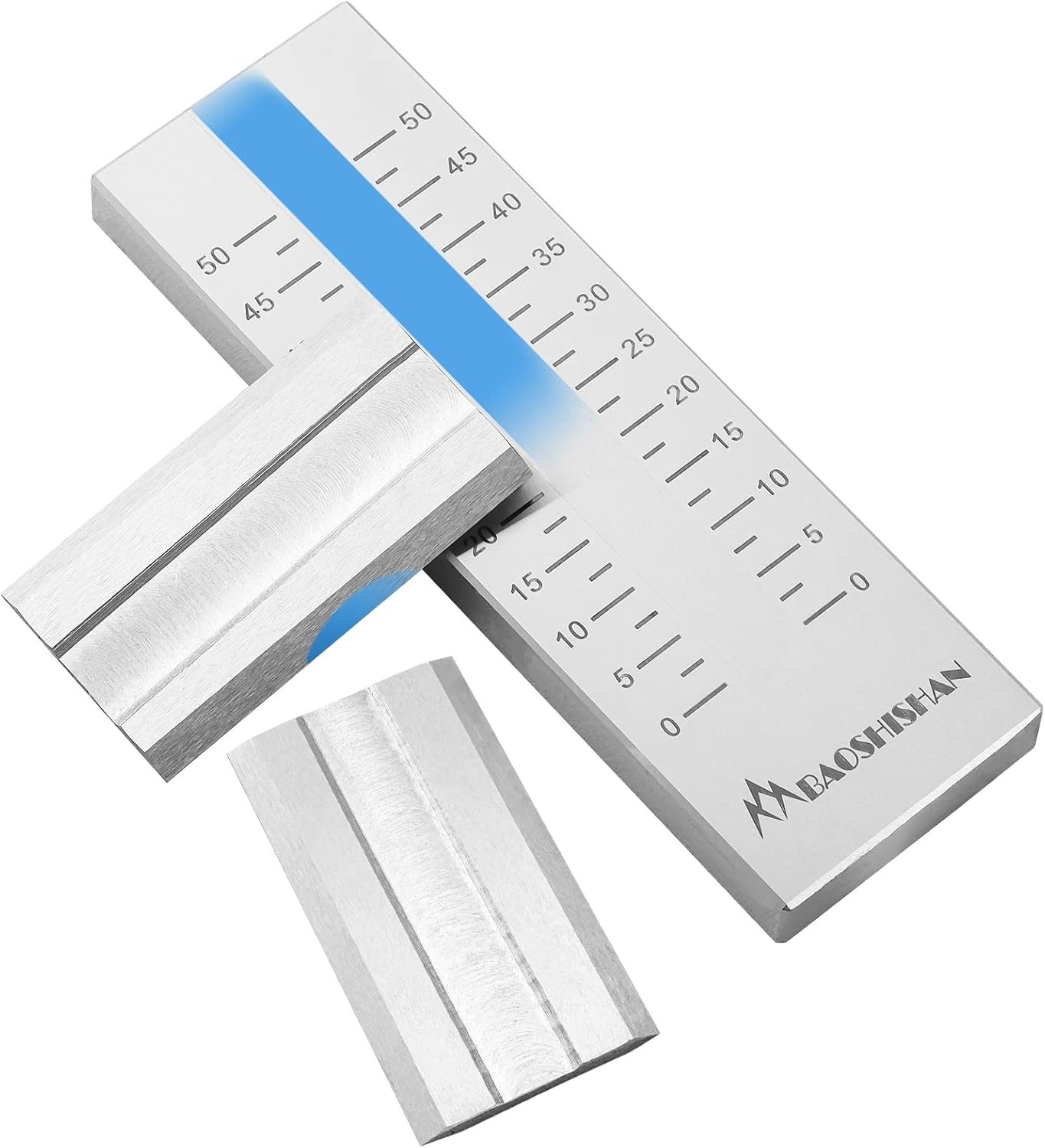

Crafted from high-quality 4Cr13 stainless steel through forging, this fineness gauge isn't just another tool—it's a precision instrument built to last. The single groove design features a carefully calculated slope with micron-accurate markings (±1μm tolerance), giving you reliable, repeatable measurements every time. The index value of 2.5μm ensures you can detect even the subtlest variations in particle size that could impact your product's performance.
Using this grindometer is surprisingly straightforward. Simply place a small sample of your material in the deeper groove area, then use the included scraper to pull it across the grooves from deep to shallow. Within seconds (literally—aim for under 5 seconds for accurate readings), you'll be able to see exactly where your particles become visible in the channel. That marked number represents your particle size in microns, giving you instant, actionable data about your material's fineness.
Don't let the "grindometer" name limit your thinking—this tool is incredibly versatile beyond just paint testing. It's perfect for coatings, printing inks, plastics, ceramics, food processing (like chocolate fineness), pharmaceuticals, and even paper manufacturing. The 4 Hegman scale conversion (where 4 Hegman = 50μm) makes it easy to work with industry standards while maintaining the precision you need for quality control.
When choosing a grindometer, the general rule is to select one with a range 5-10μm higher than your typical particle size range. The 0-50μm model covers a wide sweet spot for many applications, while the single groove design keeps things simple and focused. The included storage case protects your investment when not in use, and the two scrapers ensure you always have a clean tool ready for testing.
